Name: SESD0402X1UN-0020-090
Brand: Littelfuse Inc.
SKU: SESD0402X1UN-0020-090
Price: 0.32 USD
Availability: InStock

REF: SESD0402X1UN-0020-090 Littelfuse Inc.

SESD0402X1UN-0020-090

Littelfuse Inc.

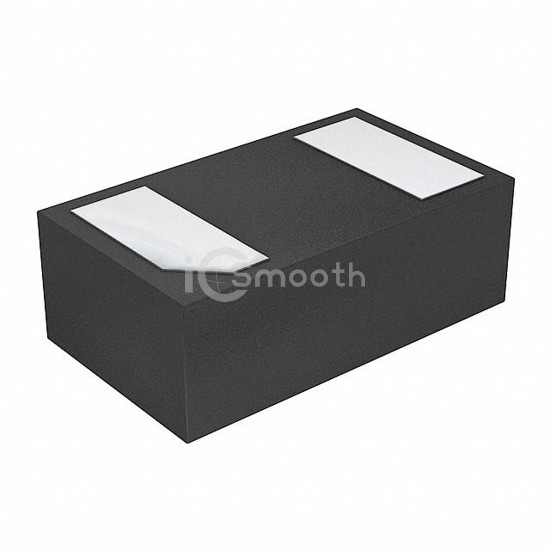

TVS DIODE 7VWM 9.2VC 0402/2DFN

SESD0402X1UN-0020-090 is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 7VWM 9.2VC 0402/2DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 0402 (1006 Metric).

Datasheet Request a Quote

In Stock: 302,792

Tiered Pricing USD

1+ $0.3200 —

10+ $0.2940 -8%

100+ $0.2570 -20%

500+ $0.2350 -27%

1,000+ $0.1930 -40%

2,000+ $0.1928 -40% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	7V (Max)
Voltage - Breakdown (Min)	9V (Typ)
Voltage - Clamping (Max) @ Ipp	9.2V (Typ)
Current - Peak Pulse (10/1000µs)	2A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	Automotive, HDMI
Capacitance @ Frequency	0.2pF @ 3GHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	0402 (1006 Metric)
Supplier Device Package	0402/2DFN (1x0.60)
