Name: SESD0402X1BN-0015-096
Brand: Littelfuse Inc.
SKU: SESD0402X1BN-0015-096
Price: 0.76 USD
Availability: InStock

REF: SESD0402X1BN-0015-096 Littelfuse Inc.

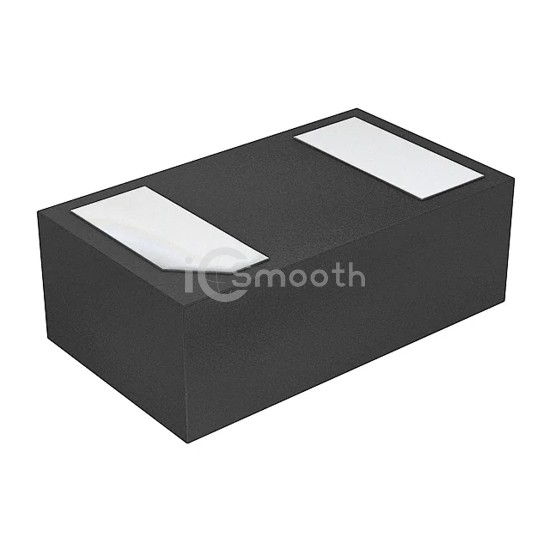

SESD0402X1BN-0015-096

Littelfuse Inc.

TVS DIODE 7VWM 14VC 0402

SESD0402X1BN-0015-096 is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 7VWM 14VC 0402. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case 2-XDFN.

Datasheet Request a Quote

In Stock: 11,314

Tiered Pricing USD

1+ $0.7600 —

10+ $0.4890 -36%

100+ $0.3290 -57%

500+ $0.2580 -66%

1,000+ $0.2120 -72%

2,000+ $0.2115 -72%

5,000+ $0.1928 -75% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	7V (Max)
Voltage - Breakdown (Min)	9.6V (Typ)
Voltage - Clamping (Max) @ Ipp	14V (Typ)
Current - Peak Pulse (10/1000µs)	2.5A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	Automotive, HDMI
Capacitance @ Frequency	0.15pF @ 3GHz
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	2-XDFN
Supplier Device Package	0402
