Name: SESD0402Q2UG-0020-090
Brand: Littelfuse Inc.
SKU: SESD0402Q2UG-0020-090
Price: 0.80 USD
Availability: InStock

REF: SESD0402Q2UG-0020-090 Littelfuse Inc.

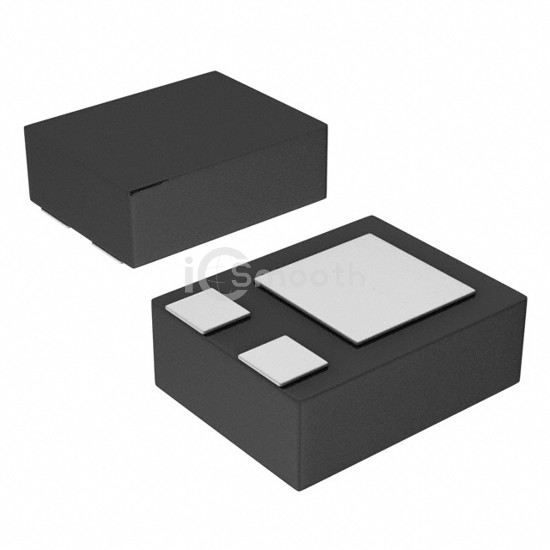

SESD0402Q2UG-0020-090

Littelfuse Inc.

TVS DIODE 7VWM 9.2VC 0402/3DFN

SESD0402Q2UG-0020-090 is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 7VWM 9.2VC 0402/3DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 3-XFDFN.

Datasheet Request a Quote

In Stock: 4,679

Tiered Pricing USD

1+ $0.8000 —

10+ $0.6670 -17%

100+ $0.4820 -40%

500+ $0.3890 -51%

1,000+ $0.3220 -60%

2,000+ $0.3213 -60% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	2
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	7V (Max)
Voltage - Breakdown (Min)	9V (Typ)
Voltage - Clamping (Max) @ Ipp	9.2V (Typ)
Current - Peak Pulse (10/1000µs)	2A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	Automotive, HDMI
Capacitance @ Frequency	0.2pF @ 3GHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	3-XFDFN
Supplier Device Package	0402/3DFN (0.6x1)
