Name: SESD0201X1UN0020-090
Brand: Littelfuse Inc.
SKU: SESD0201X1UN0020-090
Price: 0.68 USD
Availability: InStock

REF: SESD0201X1UN0020-090 Littelfuse Inc.

SESD0201X1UN0020-090

Littelfuse Inc.

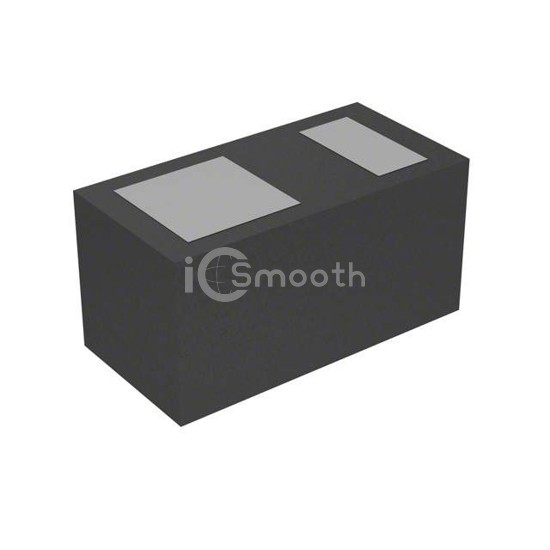

TVS DIODE 7VWM 9.2V 0201/DFN0603

SESD0201X1UN0020-090 is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 7VWM 9.2V 0201/DFN0603. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 0201 (0603 Metric).

Datasheet Request a Quote

In Stock: 2,058

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	7V (Max)
Voltage - Breakdown (Min)	9V (Typ)
Voltage - Clamping (Max) @ Ipp	9.2V (Typ)
Current - Peak Pulse (10/1000µs)	2A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	Automotive, HDMI
Capacitance @ Frequency	0.2pF @ 3GHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	0201/DFN0603
