Name: SD22-01FTG
Brand: Littelfuse Inc.
SKU: SD22-01FTG
Price: 0.32 USD
Availability: InStock

REF: SD22-01FTG Littelfuse Inc.

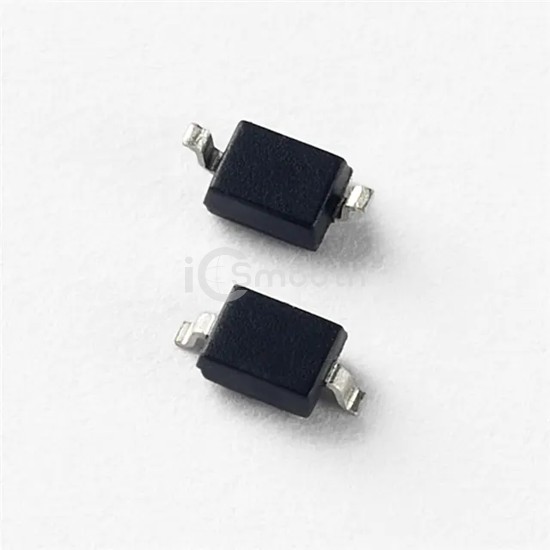

SD22-01FTG

TVS DIODE 22VWM 35.5VC SOD323

SD22-01FTG is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 22VWM 35.5VC SOD323. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TA), package / case SC-76, SOD-323.

Datasheet Request a Quote

In Stock: 9,411

Tiered Pricing USD

1+ $0.3200 —

10+ $0.2570 -20%

100+ $0.1250 -61% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	22V (Max)
Voltage - Breakdown (Min)	23V
Voltage - Clamping (Max) @ Ipp	35.5V (Typ)
Current - Peak Pulse (10/1000µs)	27A (8/20µs)

Power - Peak Pulse	950W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	160pF @ 1MHz
Operating Temperature	-40°C ~ 150°C (TA)
Mounting Type	Surface Mount
Package / Case	SC-76, SOD-323
Supplier Device Package	SOD-323
