Name: S8X5ECSRP
Brand: Littelfuse Inc.
SKU: S8X5ECSRP
Price: 0.89 USD
Availability: InStock

REF: S8X5ECSRP Littelfuse Inc.

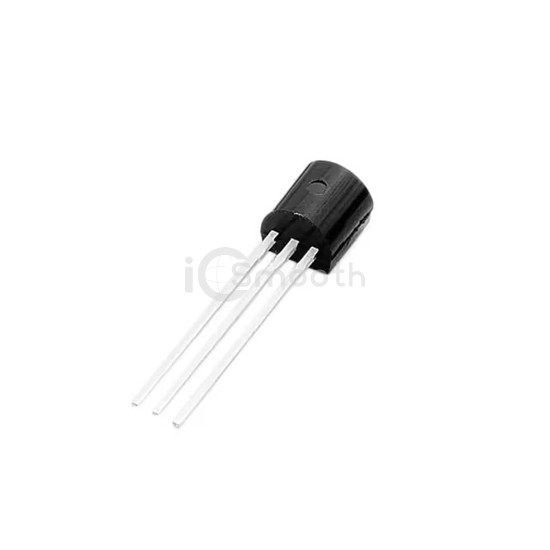

S8X5ECSRP

SCR 800V 500MA TO92

S8X5ECSRP is a Thyristors - SCRs manufactured by Littelfuse Inc.. SCR 800V 500MA TO92. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), package / case TO-226-3, TO-92-3 (TO-226AA) Formed Leads.

Datasheet Request a Quote

In Stock: 484

Tiered Pricing USD

1+ $0.8900 —

10+ $0.5580 -37%

100+ $0.3639 -59%

500+ $0.2804 -68%

1,000+ $0.2535 -72% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	800 V
Voltage - Gate Trigger (Vgt) (Max)	800 mV
Current - Gate Trigger (Igt) (Max)	100 µA
Voltage - On State (Vtm) (Max)	1.4 V
Current - On State (It (AV)) (Max)	300 mA
Current - On State (It (RMS)) (Max)	500 mA
Current - Hold (Ih) (Max)	3 mA

Current - Off State (Max)	3 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	10A, 12A
SCR Type	Sensitive Gate
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-226-3, TO-92-3 (TO-226AA) Formed Leads
Supplier Device Package	TO-92
