Name: S8X5ECS2RP
Brand: Littelfuse Inc.
SKU: S8X5ECS2RP
Price: 0.95 USD
Availability: InStock

REF: S8X5ECS2RP Littelfuse Inc.

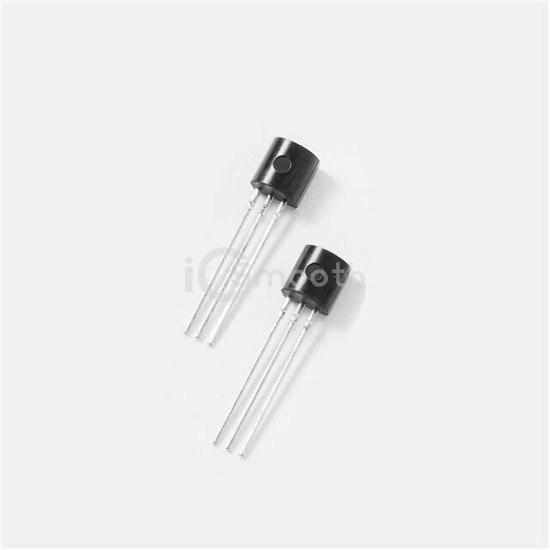

S8X5ECS2RP

SCR SEN 800V 0.5A TO-92WB

S8X5ECS2RP is a Thyristors - SCRs manufactured by Littelfuse Inc.. SCR SEN 800V 0.5A TO-92WB. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), package / case TO-226-3, TO-92-3 (TO-226AA).

Datasheet Request a Quote

In Stock: 1,997

Tiered Pricing USD

1+ $0.9500 —

10+ $0.5890 -38%

100+ $0.3833 -60%

500+ $0.2947 -69%

1,000+ $0.2662 -72% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	800 V
Voltage - Gate Trigger (Vgt) (Max)	800 mV
Current - Gate Trigger (Igt) (Max)	50 µA
Voltage - On State (Vtm) (Max)	1.8 V
Current - On State (It (AV)) (Max)	300 mA
Current - On State (It (RMS)) (Max)	500 mA
Current - Hold (Ih) (Max)	3 mA

Current - Off State (Max)	3 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	10A, 12A
SCR Type	Sensitive Gate
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package	TO-92
