Name: S8065KTP
Brand: Littelfuse Inc.
SKU: S8065KTP
Price: 9.78 USD
Availability: InStock

REF: S8065KTP Littelfuse Inc.

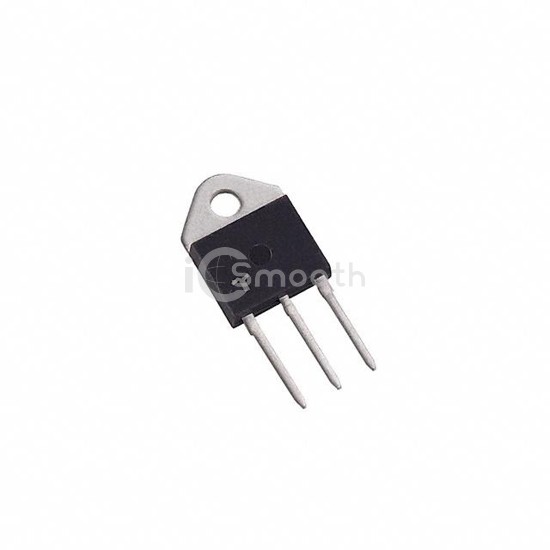

S8065KTP

SCR 800V 65A TO218

S8065KTP is a Thyristors - SCRs manufactured by Littelfuse Inc.. SCR 800V 65A TO218. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-218-3 Isolated Tab, TO-218AC.

Datasheet Request a Quote

In Stock: 5,800

Tiered Pricing USD

1+ $9.7800 —

25+ $5.9676 -39%

100+ $5.1338 -48% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	800 V
Voltage - Gate Trigger (Vgt) (Max)	2 V
Current - Gate Trigger (Igt) (Max)	50 mA
Voltage - On State (Vtm) (Max)	1.8 V
Current - On State (It (AV)) (Max)	41 A
Current - On State (It (RMS)) (Max)	65 A
Current - Hold (Ih) (Max)	80 mA

Current - Off State (Max)	20 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	800A, 950A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-218-3 Isolated Tab, TO-218AC
Supplier Device Package	TO-218 Isolated Tab
