Name: S8055RTP
Brand: Littelfuse Inc.
SKU: S8055RTP
Price: 5.56 USD
Availability: InStock

REF: S8055RTP Littelfuse Inc.

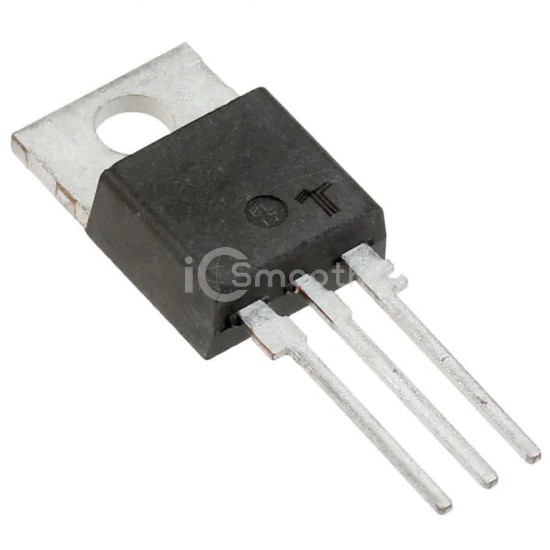

S8055RTP

SCR 800V 55A TO220

S8055RTP is a Thyristors - SCRs manufactured by Littelfuse Inc.. SCR 800V 55A TO220. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-220-3.

Datasheet Request a Quote

In Stock: 1,591

Tiered Pricing USD

1+ $5.5600 —

50+ $2.9446 -47%

100+ $2.6922 -52%

500+ $2.4305 -56% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	800 V
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Gate Trigger (Igt) (Max)	40 mA
Voltage - On State (Vtm) (Max)	1.8 V
Current - On State (It (AV)) (Max)	35 A
Current - On State (It (RMS)) (Max)	55 A
Current - Hold (Ih) (Max)	60 mA

Current - Off State (Max)	20 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	550A, 650A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220 Non-Isolated Tab
