Name: S802TSRP
Brand: Littelfuse Inc.
SKU: S802TSRP
Price: 1.72 USD
Availability: InStock

REF: S802TSRP Littelfuse Inc.

S802TSRP

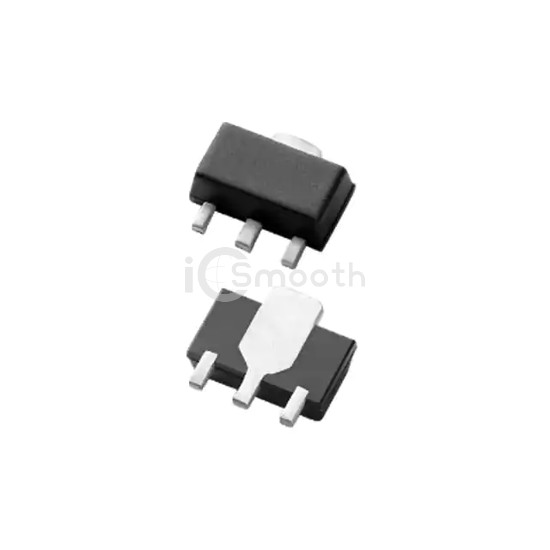

SCR SENSITIVE 800V 1.5A SOT223

S802TSRP is a Thyristors - SCRs manufactured by Littelfuse Inc.. SCR SENSITIVE 800V 1.5A SOT223. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case TO-261-4, TO-261AA.

Datasheet Request a Quote

In Stock: 8,227

Tiered Pricing USD

1+ $1.7200 —

10+ $1.0940 -36%

100+ $0.7330 -57%

500+ $0.5783 -66% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	800 V
Voltage - Gate Trigger (Vgt) (Max)	800 mV
Current - Gate Trigger (Igt) (Max)	100 µA
Voltage - On State (Vtm) (Max)	1.8 V
Current - On State (It (AV)) (Max)	900 mA
Current - On State (It (RMS)) (Max)	1.5 A
Current - Hold (Ih) (Max)	3 mA

Current - Off State (Max)	3 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	20A, 24A
SCR Type	Sensitive Gate
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-261-4, TO-261AA
Supplier Device Package	SOT-223
