Name: S802ECS
Brand: Littelfuse Inc.
SKU: S802ECS
Price: 1.05 USD
Availability: InStock

REF: S802ECS Littelfuse Inc.

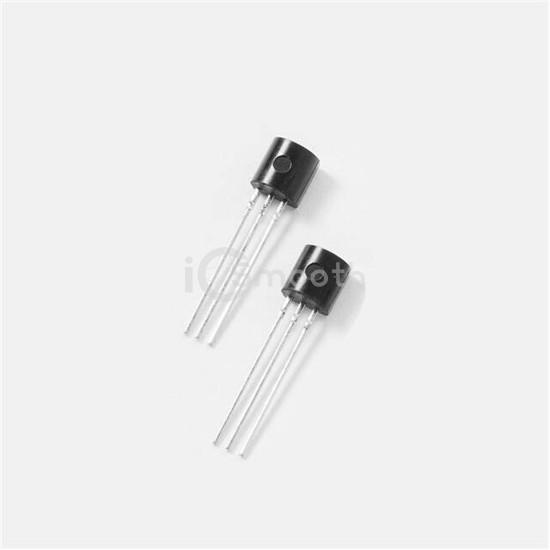

S802ECS

SCR SEN 800V 1.5A TO-92WB

S802ECS is a Thyristors - SCRs manufactured by Littelfuse Inc.. SCR SEN 800V 1.5A TO-92WB. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), package / case TO-226-3, TO-92-3 (TO-226AA).

Datasheet Request a Quote

In Stock: 2,480

Tiered Pricing USD

1+ $1.0500 —

10+ $0.6590 -37%

100+ $0.4333 -59%

500+ $0.3361 -68%

1,000+ $0.3048 -71%

2,500+ $0.2709 -74%

5,000+ $0.2500 -76%

10,000+ $0.2493 -76% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	800 V
Voltage - Gate Trigger (Vgt) (Max)	800 mV
Current - Gate Trigger (Igt) (Max)	100 µA
Voltage - On State (Vtm) (Max)	1.6 V
Current - On State (It (AV)) (Max)	900 mA
Current - On State (It (RMS)) (Max)	1.5 A
Current - Hold (Ih) (Max)	3 mA

Current - Off State (Max)	3 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	20A, 24A
SCR Type	Sensitive Gate
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package	TO-92
