Name: S802CS2RP
Brand: Littelfuse Inc.
SKU: S802CS2RP
Price: 2.14 USD
Availability: InStock

REF: S802CS2RP Littelfuse Inc.

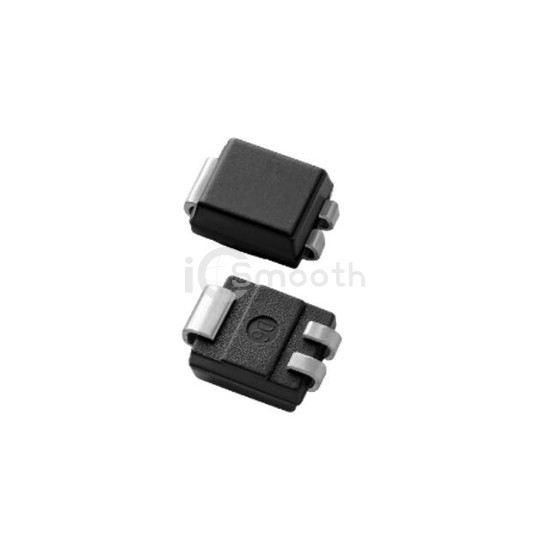

S802CS2RP

SCR 800V 1.25A DO214

S802CS2RP is a Thyristors - SCRs manufactured by Littelfuse Inc.. SCR 800V 1.25A DO214. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 110°C (TJ), package / case DO-214AA, SMB (3 Leads), Compak.

Datasheet Request a Quote

In Stock: 5,100

Tiered Pricing USD

1+ $2.1400 —

10+ $1.3710 -36%

100+ $0.9299 -57%

500+ $0.7408 -65%

1,000+ $0.7072 -67% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	800 V
Voltage - Gate Trigger (Vgt) (Max)	800 mV
Current - Gate Trigger (Igt) (Max)	200 µA
Voltage - On State (Vtm) (Max)	1.7 V
Current - On State (It (AV)) (Max)	800 mA
Current - On State (It (RMS)) (Max)	1.25 A
Current - Hold (Ih) (Max)	5 mA

Current - Off State (Max)	1 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	16A, 20A
SCR Type	Sensitive Gate
Operating Temperature	-40°C ~ 110°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB (3 Leads), Compak
Supplier Device Package	Compak
