Name: S8015L
Brand: Littelfuse Inc.
SKU: S8015L
Availability: InStock

REF: S8015L Littelfuse Inc.

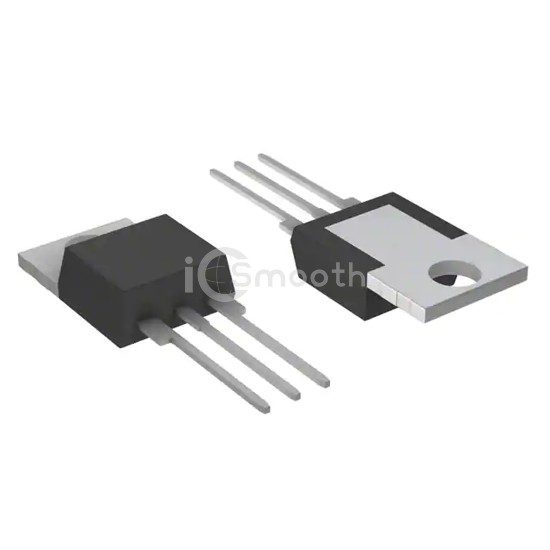

S8015L

SCR 800V 15A TO220

S8015L is a Thyristors - SCRs manufactured by Littelfuse Inc.. SCR 800V 15A TO220. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-220-3 Isolated Tab.

Datasheet Request a Quote

In Stock: 2,545

Specifications

15 parameters

Product Status	Discontinued at Digi-Key
Voltage - Off State	800 V
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Gate Trigger (Igt) (Max)	30 mA
Voltage - On State (Vtm) (Max)	1.6 V
Current - On State (It (AV)) (Max)	9.5 A
Current - On State (It (RMS)) (Max)	15 A
Current - Hold (Ih) (Max)	40 mA

Current - Off State (Max)	20 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	188A, 225A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-220-3 Isolated Tab
Supplier Device Package	TO-220 Isolated Tab
