Name: S8012NRP
Brand: Littelfuse Inc.
SKU: S8012NRP
Price: 0.98 USD
Availability: InStock

REF: S8012NRP Littelfuse Inc.

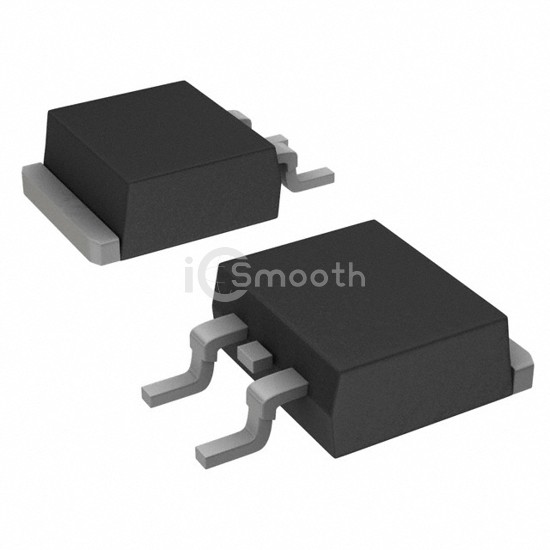

S8012NRP

SCR 800V 12A TO263

S8012NRP is a Thyristors - SCRs manufactured by Littelfuse Inc.. SCR 800V 12A TO263. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 1,267

Specifications

15 parameters

Product Status	Active
Voltage - Off State	800 V
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Gate Trigger (Igt) (Max)	20 mA
Voltage - On State (Vtm) (Max)	1.6 V
Current - On State (It (AV)) (Max)	7.6 A
Current - On State (It (RMS)) (Max)	12 A
Current - Hold (Ih) (Max)	40 mA

Current - Off State (Max)	20 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	120A, 130A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	TO-263 (D²Pak)
