Name: S6070WTP
Brand: Littelfuse Inc.
SKU: S6070WTP
Price: 8.98 USD
Availability: InStock

REF: S6070WTP Littelfuse Inc.

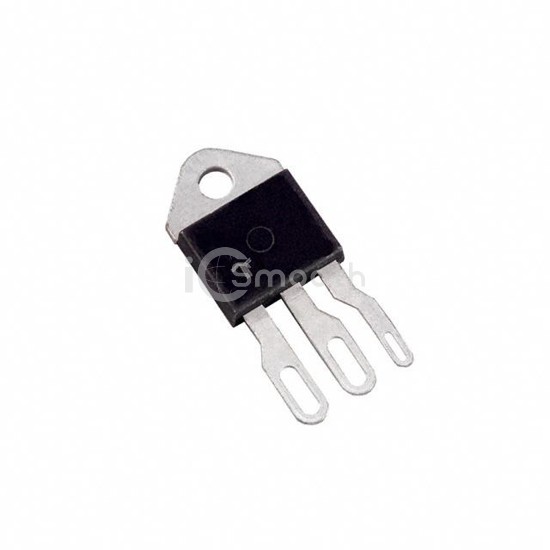

S6070WTP

SCR 600V 70A TO218X

S6070WTP is a Thyristors - SCRs manufactured by Littelfuse Inc.. SCR 600V 70A TO218X. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-218X-3.

Datasheet Request a Quote

In Stock: 33

Tiered Pricing USD

1+ $8.9800 —

25+ $5.4396 -39%

100+ $4.5971 -49%

500+ $4.5879 -49% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	600 V
Voltage - Gate Trigger (Vgt) (Max)	2 V
Current - Gate Trigger (Igt) (Max)	50 mA
Voltage - On State (Vtm) (Max)	1.8 V
Current - On State (It (AV)) (Max)	45 A
Current - On State (It (RMS)) (Max)	70 A
Current - Hold (Ih) (Max)	80 mA

Current - Off State (Max)	20 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	800A, 950A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-218X-3
Supplier Device Package	TO-218X
