Name: S6002CSRP
Brand: Littelfuse Inc.
SKU: S6002CSRP
Price: 0.96 USD
Availability: InStock

REF: S6002CSRP Littelfuse Inc.

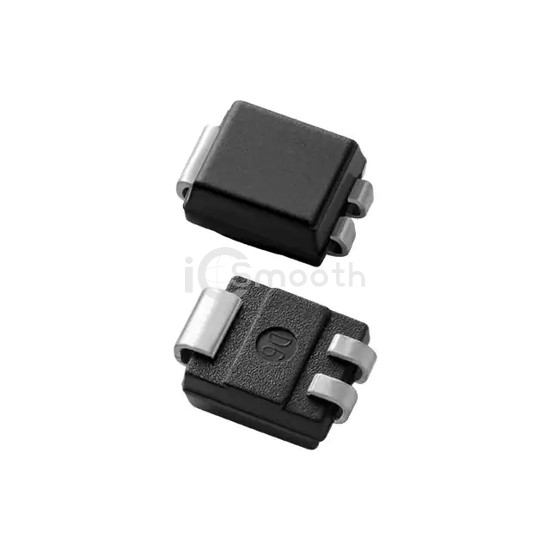

S6002CSRP

SCR 600V 2A COMPAK SMD

S6002CSRP is a Thyristors - SCRs manufactured by Littelfuse Inc.. SCR 600V 2A COMPAK SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case DO-214AA, SMB (3 Leads), Compak.

Datasheet Request a Quote

In Stock: 2,109

Tiered Pricing USD

1+ $0.9600 —

10+ $0.6020 -37%

100+ $0.3918 -59%

500+ $0.3015 -69%

1,000+ $0.2724 -72% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	600 V
Voltage - Gate Trigger (Vgt) (Max)	0.8 V
Current - Gate Trigger (Igt) (Max)	200 µA
Voltage - On State (Vtm) (Max)	1.5 V
Current - On State (It (AV)) (Max)	1.2 A
Current - On State (It (RMS)) (Max)	2 A
Current - Hold (Ih) (Max)	5 mA

Current - Off State (Max)	5 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	22.5A @ 50Hz, 25A @ 60Hz
SCR Type	Sensitive Gate
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB (3 Leads), Compak
Supplier Device Package	Compak
