Name: S4055MTP
Brand: Littelfuse Inc.
SKU: S4055MTP
Price: 6.11 USD
Availability: InStock

REF: S4055MTP Littelfuse Inc.

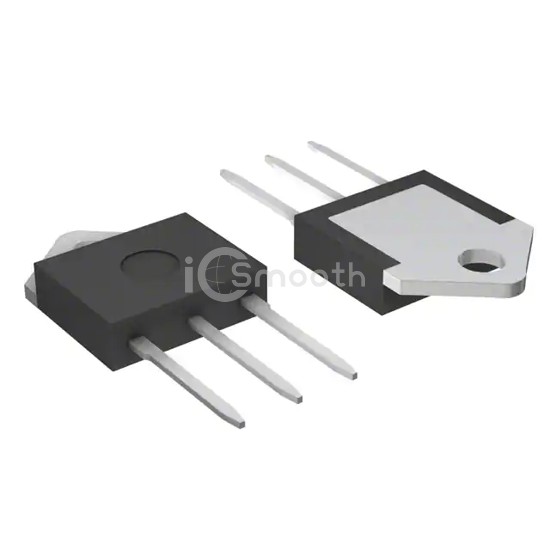

S4055MTP

SCR 400V 55A TO218

S4055MTP is a Thyristors - SCRs manufactured by Littelfuse Inc.. SCR 400V 55A TO218. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-218-3, TO-218AC.

Datasheet Request a Quote

In Stock: 20

Tiered Pricing USD

1+ $6.1100 —

25+ $3.5920 -41%

100+ $2.9911 -51%

500+ $2.7571 -55% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	400 V
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Gate Trigger (Igt) (Max)	40 mA
Voltage - On State (Vtm) (Max)	1.8 V
Current - On State (It (AV)) (Max)	35 A
Current - On State (It (RMS)) (Max)	55 A
Current - Hold (Ih) (Max)	60 mA

Current - Off State (Max)	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	550A, 650A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-218-3, TO-218AC
Supplier Device Package	TO-218 Non-Isolated Tab
