Name: S2S3RP
Brand: Littelfuse Inc.
SKU: S2S3RP
Availability: InStock

REF: S2S3RP Littelfuse Inc.

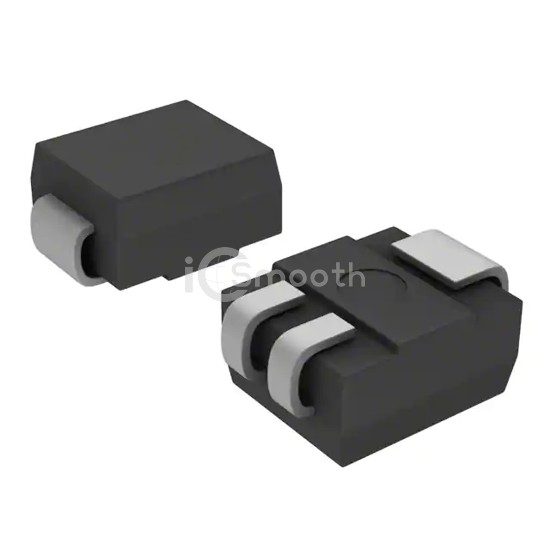

S2S3RP

SCR 200V 800MA DO214

S2S3RP is a Thyristors - SCRs manufactured by Littelfuse Inc.. SCR 200V 800MA DO214. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 110°C, package / case DO-214AA, SMB (3 Leads), Compak.

Datasheet Request a Quote

In Stock: 3,688

Specifications

15 parameters

Product Status	Obsolete
Voltage - Off State	200 V
Voltage - Gate Trigger (Vgt) (Max)	800 mV
Current - Gate Trigger (Igt) (Max)	500 µA
Voltage - On State (Vtm) (Max)	1.7 V
Current - On State (It (AV)) (Max)	510 mA
Current - On State (It (RMS)) (Max)	800 mA
Current - Hold (Ih) (Max)	8 mA

Current - Off State (Max)	1 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	16A, 20A
SCR Type	Sensitive Gate
Operating Temperature	-40°C ~ 110°C
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB (3 Leads), Compak
Supplier Device Package	DO-214 (Compak)
