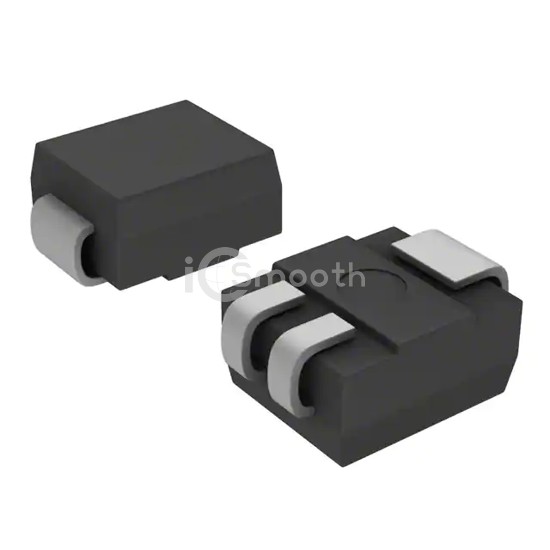

S2N1RP

SCR 200V 1A COMPAK

S2N1RP is a Thyristors - SCRs manufactured by Littelfuse Inc.. SCR 200V 1A COMPAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case DO-214AA, SMB (3 Leads), Compak.

Datasheet Request a Quote

In Stock: 1,492

Specifications

15 parameters

Product Status	Obsolete
Voltage - Off State	200 V
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Gate Trigger (Igt) (Max)	10 mA
Voltage - On State (Vtm) (Max)	1.6 V
Current - On State (It (AV)) (Max)	640 mA
Current - On State (It (RMS)) (Max)	1 A
Current - Hold (Ih) (Max)	30 mA

Current - Off State (Max)	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	25A, 30A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB (3 Leads), Compak
Supplier Device Package	Compak
