Name: S2070WTP
Brand: Littelfuse Inc.
SKU: S2070WTP
Availability: InStock

REF: S2070WTP Littelfuse Inc.

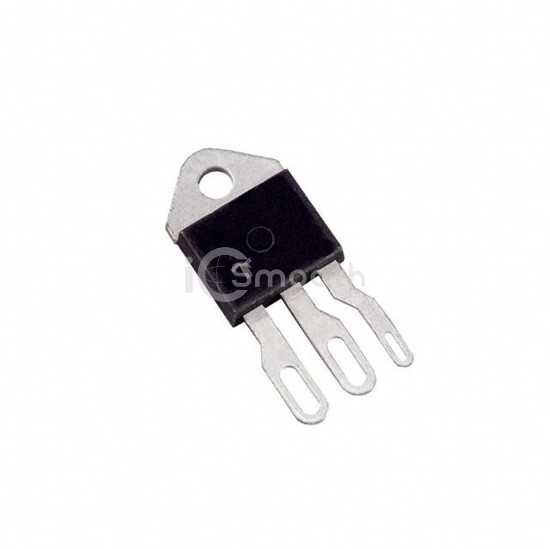

S2070WTP

SCR 200V 70A TO218X

S2070WTP is a Thyristors - SCRs manufactured by Littelfuse Inc.. SCR 200V 70A TO218X. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-218X-3.

Datasheet Request a Quote

In Stock: 4,571

Specifications

15 parameters

Product Status	Obsolete
Voltage - Off State	200 V
Voltage - Gate Trigger (Vgt) (Max)	2 V
Current - Gate Trigger (Igt) (Max)	50 mA
Voltage - On State (Vtm) (Max)	1.8 V
Current - On State (It (AV)) (Max)	45 A
Current - On State (It (RMS)) (Max)	70 A
Current - Hold (Ih) (Max)	80 mA

Current - Off State (Max)	20 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	800A, 950A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-218X-3
Supplier Device Package	TO-218X
