Name: S2055MTP
Brand: Littelfuse Inc.
SKU: S2055MTP
Availability: InStock

REF: S2055MTP Littelfuse Inc.

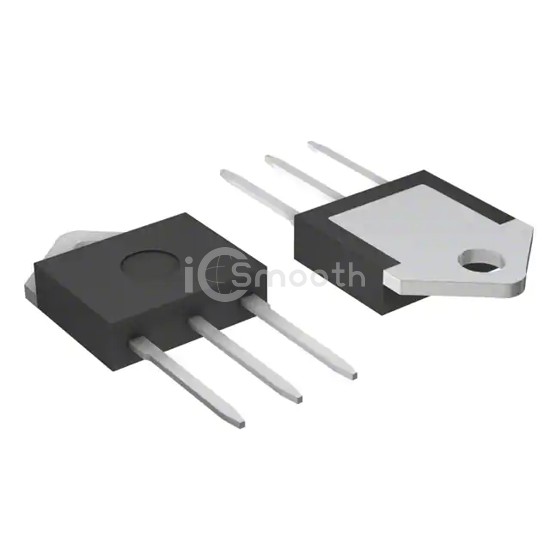

S2055MTP

SCR 200V 55A TO218

S2055MTP is a Thyristors - SCRs manufactured by Littelfuse Inc.. SCR 200V 55A TO218. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-218-3, TO-218AC.

Datasheet Request a Quote

In Stock: 8,409

Specifications

15 parameters

Product Status	Obsolete
Voltage - Off State	200 V
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Gate Trigger (Igt) (Max)	40 mA
Voltage - On State (Vtm) (Max)	1.8 V
Current - On State (It (AV)) (Max)	35 A
Current - On State (It (RMS)) (Max)	55 A
Current - Hold (Ih) (Max)	60 mA

Current - Off State (Max)	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	550A, 650A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-218-3, TO-218AC
Supplier Device Package	TO-218 Non-Isolated Tab
