Name: QV6016NH4TP
Brand: Littelfuse Inc.
SKU: QV6016NH4TP
Price: 4.84 USD
Availability: InStock

REF: QV6016NH4TP Littelfuse Inc.

QV6016NH4TP

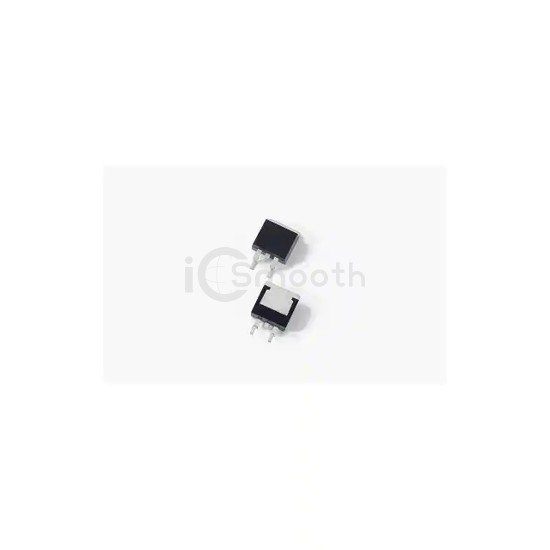

TRIAC ALTERNISTOR 600V 16A TO263

QV6016NH4TP is a Thyristors - TRIACs manufactured by Littelfuse Inc.. TRIAC ALTERNISTOR 600V 16A TO263. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 4,727

Tiered Pricing USD

1+ $4.8400 —

10+ $3.2270 -33%

100+ $2.3098 -52%

500+ $2.0211 -58% BEST

Specifications

13 parameters

Product Status	Active
Triac Type	Alternistor - Snubberless
Voltage - Off State	600 V
Current - On State (It (RMS)) (Max)	16 A
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	167A, 200A
Current - Gate Trigger (Igt) (Max)	35 mA

Current - Hold (Ih) (Max)	50 mA
Configuration	Single
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	TO-263 (D²Pak)
