Name: QV6016LH4TP
Brand: Littelfuse Inc.
SKU: QV6016LH4TP
Price: 4.61 USD
Availability: InStock

REF: QV6016LH4TP Littelfuse Inc.

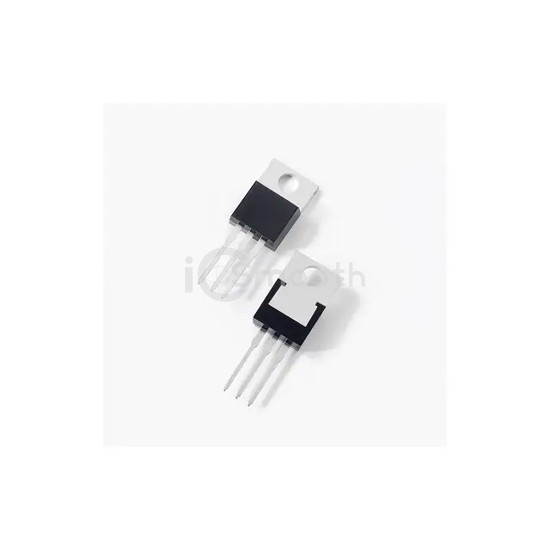

QV6016LH4TP

TRIAC ALTERNISTOR 600V 16A TO220

QV6016LH4TP is a Thyristors - TRIACs manufactured by Littelfuse Inc.. TRIAC ALTERNISTOR 600V 16A TO220. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case TO-220-3 Full Pack, Isolated Tab.

Datasheet Request a Quote

In Stock: 3,241

Tiered Pricing USD

1+ $4.6100 —

10+ $3.0610 -34%

100+ $2.1840 -53%

500+ $1.8889 -59% BEST

Specifications

13 parameters

Product Status	Active
Triac Type	Alternistor - Snubberless
Voltage - Off State	600 V
Current - On State (It (RMS)) (Max)	16 A
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	167A, 200A
Current - Gate Trigger (Igt) (Max)	35 mA

Current - Hold (Ih) (Max)	50 mA
Configuration	Single
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3 Full Pack, Isolated Tab
Supplier Device Package	ITO-220AB
