Name: QK025R6
Brand: Littelfuse Inc.
SKU: QK025R6
Availability: InStock

REF: QK025R6 Littelfuse Inc.

QK025R6

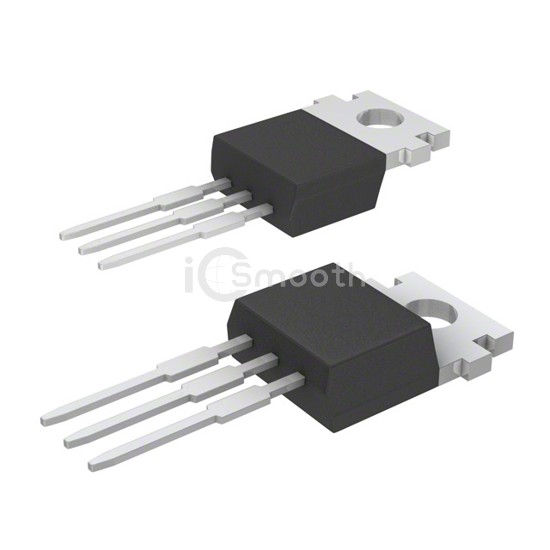

TRIAC ALTERNISTOR 1KV 25A TO220

QK025R6 is a Thyristors - TRIACs manufactured by Littelfuse Inc.. TRIAC ALTERNISTOR 1KV 25A TO220. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 6,710

Specifications

13 parameters

Product Status	Discontinued at Digi-Key
Triac Type	Alternistor - Snubberless
Voltage - Off State	1 kV
Current - On State (It (RMS)) (Max)	25 A
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	208A, 250A
Current - Gate Trigger (Igt) (Max)	80 mA

Current - Hold (Ih) (Max)	100 mA
Configuration	Single
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220 Non-Isolated Tab
