Name: QK015R5TP
Brand: Littelfuse Inc.
SKU: QK015R5TP
Price: 4.50 USD
Availability: InStock

REF: QK015R5TP Littelfuse Inc.

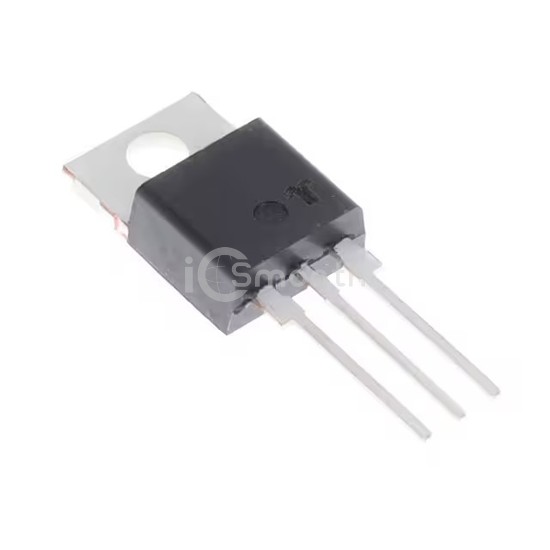

QK015R5TP

TRIAC 1000V 15A 50-50-50 MA TO22

QK015R5TP is a Thyristors - TRIACs manufactured by Littelfuse Inc.. TRIAC 1000V 15A 50-50-50 MA TO22. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 20

Tiered Pricing USD

1+ $4.5000 —

50+ $2.3374 -48%

100+ $2.1284 -53%

500+ $1.8308 -59% BEST

Specifications

13 parameters

Product Status	Active
Triac Type	Alternistor - Snubberless
Voltage - Off State	1 kV
Current - On State (It (RMS)) (Max)	15 A
Voltage - Gate Trigger (Vgt) (Max)	2 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	167A, 200A
Current - Gate Trigger (Igt) (Max)	50 mA

Current - Hold (Ih) (Max)	70 mA
Configuration	Single
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220AB
