Name: QJ8040K4TP
Brand: Littelfuse Inc.
SKU: QJ8040K4TP
Price: 13.08 USD
Availability: InStock

REF: QJ8040K4TP Littelfuse Inc.

QJ8040K4TP

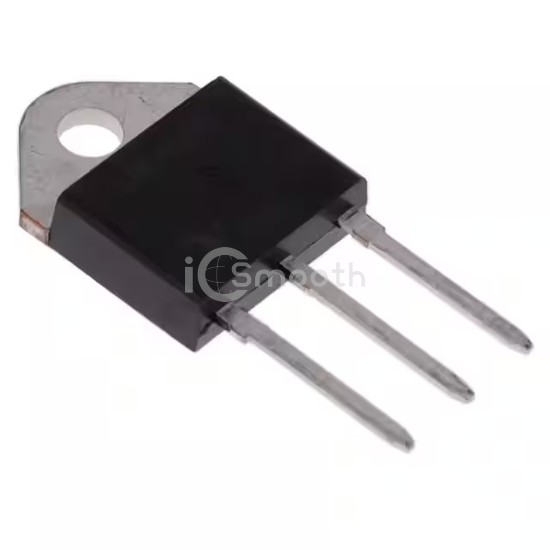

TRIAC 800V 40A TO-218AC

QJ8040K4TP is a Thyristors - TRIACs manufactured by Littelfuse Inc.. TRIAC 800V 40A TO-218AC. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case TO-218-3 Isolated Tab, TO-218AC.

Datasheet Request a Quote

In Stock: 4,176

Tiered Pricing USD

1+ $13.0800 —

10+ $9.1940 -30%

250+ $7.4922 -43% BEST

Specifications

13 parameters

Product Status	Active
Triac Type	Standard
Voltage - Off State	800 V
Current - On State (It (RMS)) (Max)	40 A
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	420A, 500A
Current - Gate Trigger (Igt) (Max)	50 mA

Current - Hold (Ih) (Max)	80 mA
Configuration	Single
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-218-3 Isolated Tab, TO-218AC
Supplier Device Package	TO-218AC Isolated
