Name: QJ8012RH4TP
Brand: Littelfuse Inc.
SKU: QJ8012RH4TP
Price: 3.95 USD
Availability: InStock

REF: QJ8012RH4TP Littelfuse Inc.

QJ8012RH4TP

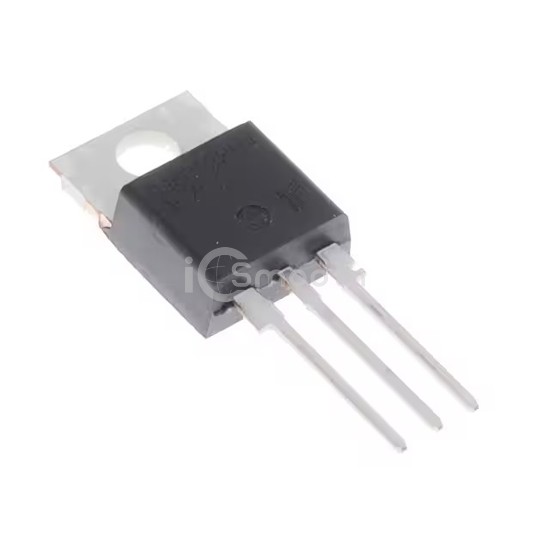

TRIAC 800V 12A TO-220R

QJ8012RH4TP is a Thyristors - TRIACs manufactured by Littelfuse Inc.. TRIAC 800V 12A TO-220R. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 5,261

Tiered Pricing USD

1+ $3.9500 —

10+ $2.6060 -34%

100+ $1.8421 -53%

500+ $1.5360 -61% BEST

Specifications

13 parameters

Product Status	Active
Triac Type	Alternistor - Snubberless
Voltage - Off State	800 V
Current - On State (It (RMS)) (Max)	12 A
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	110A, 120A
Current - Gate Trigger (Igt) (Max)	35 mA

Current - Hold (Ih) (Max)	40 mA
Configuration	Single
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220AB
