Name: QJ8010L4TP
Brand: Littelfuse Inc.
SKU: QJ8010L4TP
Price: 4.51 USD
Availability: InStock

REF: QJ8010L4TP Littelfuse Inc.

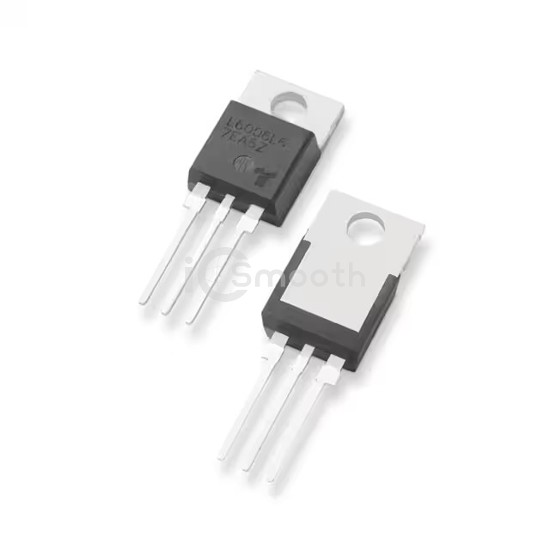

QJ8010L4TP

TRIAC 800V 10A TO220

QJ8010L4TP is a Thyristors - TRIACs manufactured by Littelfuse Inc.. TRIAC 800V 10A TO220. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case TO-220-3 Full Pack, Isolated Tab.

Datasheet Request a Quote

In Stock: 1,000

Tiered Pricing USD

1+ $4.5100 —

50+ $2.3432 -48%

100+ $2.1337 -53%

500+ $1.8362 -59% BEST

Specifications

13 parameters

Product Status	Active
Triac Type	Standard
Voltage - Off State	800 V
Current - On State (It (RMS)) (Max)	10 A
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	100A, 120A
Current - Gate Trigger (Igt) (Max)	35 mA

Current - Hold (Ih) (Max)	40 mA
Configuration	Single
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3 Full Pack, Isolated Tab
Supplier Device Package	ITO-220AB
