Name: QJ8008N5TP
Brand: Littelfuse Inc.
SKU: QJ8008N5TP
Price: 4.12 USD
Availability: InStock

REF: QJ8008N5TP Littelfuse Inc.

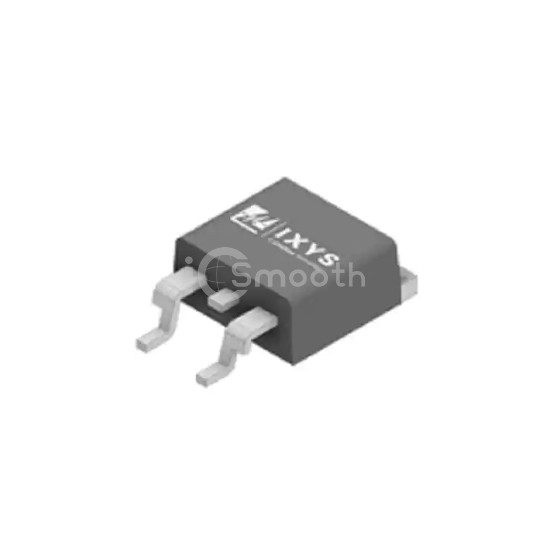

QJ8008N5TP

TRIAC 800V 8A TO263

QJ8008N5TP is a Thyristors - TRIACs manufactured by Littelfuse Inc.. TRIAC 800V 8A TO263. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 985

Tiered Pricing USD

1+ $4.1200 —

50+ $2.1248 -48%

100+ $1.9314 -53%

500+ $1.6271 -61% BEST

Specifications

13 parameters

Product Status	Active
Triac Type	Standard
Voltage - Off State	800 V
Current - On State (It (RMS)) (Max)	8 A
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	100A, 120A
Current - Gate Trigger (Igt) (Max)	50 mA

Current - Hold (Ih) (Max)	50 mA
Configuration	Single
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	TO-263 (D²Pak)
