Name: Q8035P5
Brand: Littelfuse Inc.
SKU: Q8035P5
Availability: InStock

REF: Q8035P5 Littelfuse Inc.

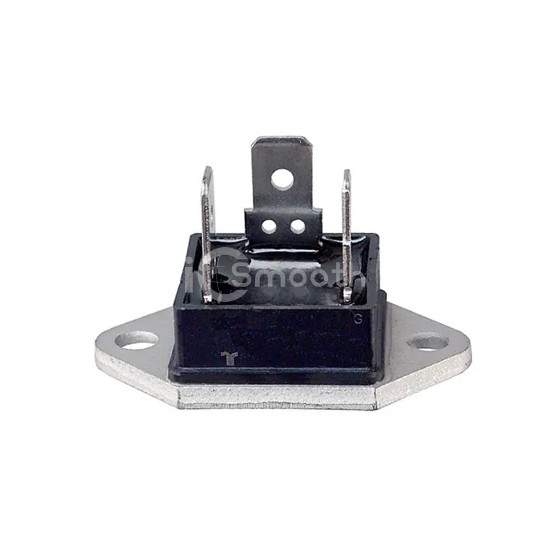

Q8035P5

TRIAC 800V 35A TO-3

Q8035P5 is a Thyristors - TRIACs manufactured by Littelfuse Inc.. TRIAC 800V 35A TO-3. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 125°C (TJ), package / case Fastpak, TO-3 Base.

Datasheet Request a Quote

In Stock: 7,148

Specifications

13 parameters

Product Status	Obsolete
Triac Type	Standard
Voltage - Off State	800 V
Current - On State (It (RMS)) (Max)	35 A
Voltage - Gate Trigger (Vgt) (Max)	2.75 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	300A, 350A
Current - Gate Trigger (Igt) (Max)	50 mA

Current - Hold (Ih) (Max)	50 mA
Configuration	Single
Operating Temperature	-25°C ~ 125°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Fastpak, TO-3 Base
Supplier Device Package	TO-3/TO-239 (Fastpak)
