Name: Q8008RH4
Brand: Littelfuse Inc.
SKU: Q8008RH4
Availability: InStock

REF: Q8008RH4 Littelfuse Inc.

Q8008RH4

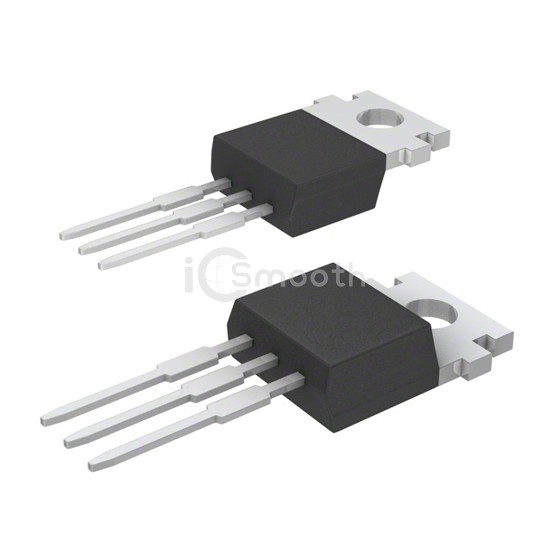

TRIAC ALTERNISTOR 800V 8A TO220

Q8008RH4 is a Thyristors - TRIACs manufactured by Littelfuse Inc.. TRIAC ALTERNISTOR 800V 8A TO220. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 4,205

Specifications

13 parameters

Product Status	Discontinued at Digi-Key
Triac Type	Alternistor - Snubberless
Voltage - Off State	800 V
Current - On State (It (RMS)) (Max)	8 A
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	83A, 100A
Current - Gate Trigger (Igt) (Max)	35 mA

Current - Hold (Ih) (Max)	35 mA
Configuration	Single
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220 Non-Isolated Tab
