Name: Q6040J781TP
Brand: Littelfuse Inc.
SKU: Q6040J781TP
Availability: InStock

REF: Q6040J781TP Littelfuse Inc.

Q6040J781TP

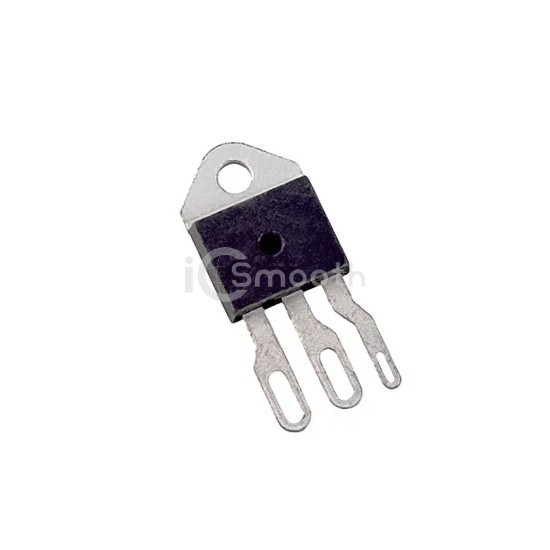

TRIAC ALTERNISTOR 600V TO218X

Q6040J781TP is a Thyristors - TRIACs manufactured by Littelfuse Inc.. TRIAC ALTERNISTOR 600V TO218X. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), package / case TO-218X-3 Isolated Tab.

Datasheet Request a Quote

In Stock: 3,754

Specifications

13 parameters

Product Status	Active
Triac Type	Alternistor - Snubberless
Voltage - Off State	600 V
Current - On State (It (RMS)) (Max)	40 A
Voltage - Gate Trigger (Vgt) (Max)	2 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	335A, 400A
Current - Gate Trigger (Igt) (Max)	100 mA

Current - Hold (Ih) (Max)	100 mA
Configuration	Single
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-218X-3 Isolated Tab
Supplier Device Package	TO-218X Isolated
