Name: Q6035RH5TP
Brand: Littelfuse Inc.
SKU: Q6035RH5TP
Price: 5.43 USD
Availability: InStock

REF: Q6035RH5TP Littelfuse Inc.

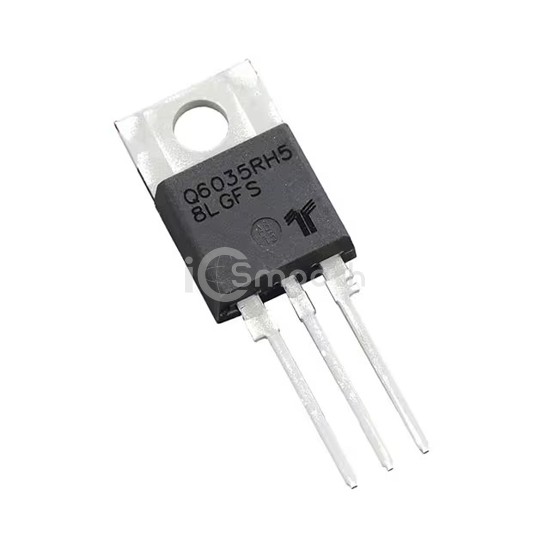

Q6035RH5TP

ALTNSTR 600V 25 A 50-50-50 MA TO

Q6035RH5TP is a Thyristors - TRIACs manufactured by Littelfuse Inc.. ALTNSTR 600V 25 A 50-50-50 MA TO. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 125°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 9,383

Tiered Pricing USD

1+ $5.4300 —

50+ $2.8726 -47%

100+ $2.6251 -52%

500+ $2.3580 -57% BEST

Specifications

13 parameters

Product Status	Active
Triac Type	Alternistor - Snubberless
Voltage - Off State	600 V
Current - On State (It (RMS)) (Max)	35 A
Voltage - Gate Trigger (Vgt) (Max)	2 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	290A, 350A
Current - Gate Trigger (Igt) (Max)	50 mA

Current - Hold (Ih) (Max)	75 mA
Configuration	Single
Operating Temperature	-25°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220 Non-Isolated Tab
