Q6035RH5

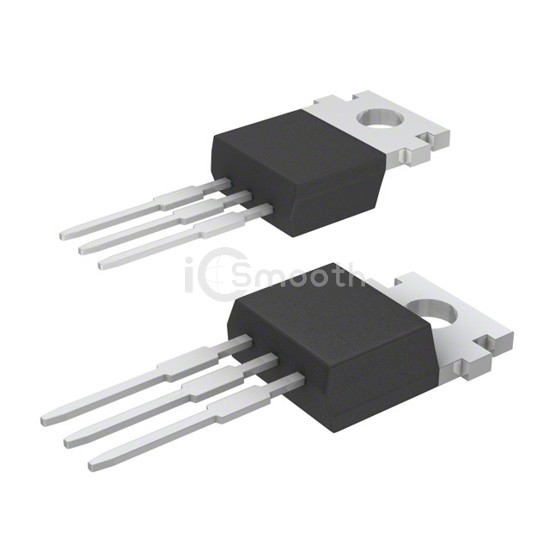

TRIAC ALTERNISTOR 600V 35A TO220

Q6035RH5 is a Thyristors - TRIACs manufactured by Littelfuse Inc.. TRIAC ALTERNISTOR 600V 35A TO220. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 125°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 7,396

Specifications

13 parameters

Product Status	Discontinued at Digi-Key
Triac Type	Alternistor - Snubberless
Voltage - Off State	600 V
Current - On State (It (RMS)) (Max)	35 A
Voltage - Gate Trigger (Vgt) (Max)	2 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	290A, 350A
Current - Gate Trigger (Igt) (Max)	50 mA

Current - Hold (Ih) (Max)	75 mA
Configuration	Single
Operating Temperature	-25°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220 Non-Isolated Tab
