Name: Q6016RH4TP
Brand: Littelfuse Inc.
SKU: Q6016RH4TP
Price: 3.82 USD
Availability: InStock

REF: Q6016RH4TP Littelfuse Inc.

Q6016RH4TP

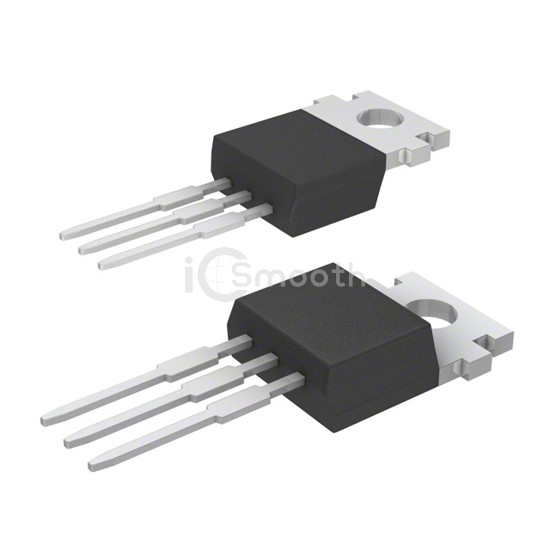

TRIAC ALTERNISTOR 600V 16A TO220

Q6016RH4TP is a Thyristors - TRIACs manufactured by Littelfuse Inc.. TRIAC ALTERNISTOR 600V 16A TO220. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 6,249

Tiered Pricing USD

1+ $3.8200 —

10+ $2.5170 -34%

100+ $1.7756 -54%

500+ $1.4686 -62% BEST

Specifications

13 parameters

Product Status	Active
Triac Type	Alternistor - Snubberless
Voltage - Off State	600 V
Current - On State (It (RMS)) (Max)	16 A
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	167A, 200A
Current - Gate Trigger (Igt) (Max)	35 mA

Current - Hold (Ih) (Max)	50 mA
Configuration	Single
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220AB
