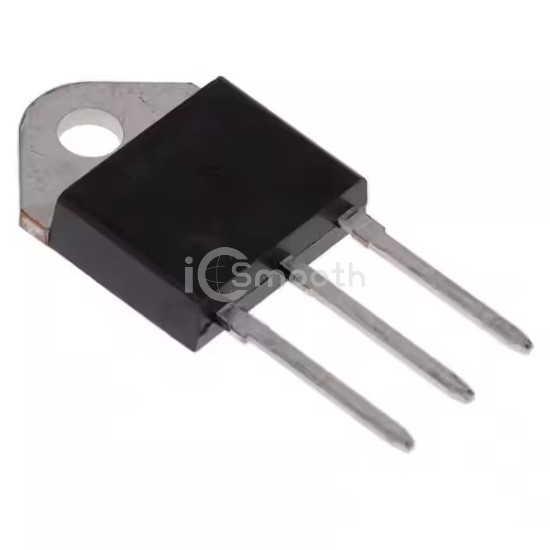

Name: Q4040K5TP
Brand: Littelfuse Inc.
SKU: Q4040K5TP
Price: 10.54 USD
Availability: InStock

REF: Q4040K5TP Littelfuse Inc.

Q4040K5TP

ALTSTR 400V 40A 50-50-50MA TO218

Q4040K5TP is a Thyristors - TRIACs manufactured by Littelfuse Inc.. ALTSTR 400V 40A 50-50-50MA TO218. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), package / case TO-218-3 Isolated Tab, TO-218AC.

Datasheet Request a Quote

In Stock: 244

Tiered Pricing USD

1+ $10.5400 —

10+ $7.3170 -31%

250+ $5.6575 -46% BEST

Specifications

13 parameters

Product Status	Active
Triac Type	Alternistor - Snubberless
Voltage - Off State	400 V
Current - On State (It (RMS)) (Max)	40 A
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	335A, 400A
Current - Gate Trigger (Igt) (Max)	50 mA

Current - Hold (Ih) (Max)	100 mA
Configuration	Single
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-218-3 Isolated Tab, TO-218AC
Supplier Device Package	TO-218AC Isolated
