Name: Q4025K6TP
Brand: Littelfuse Inc.
SKU: Q4025K6TP
Price: 7.82 USD
Availability: InStock

REF: Q4025K6TP Littelfuse Inc.

Q4025K6TP

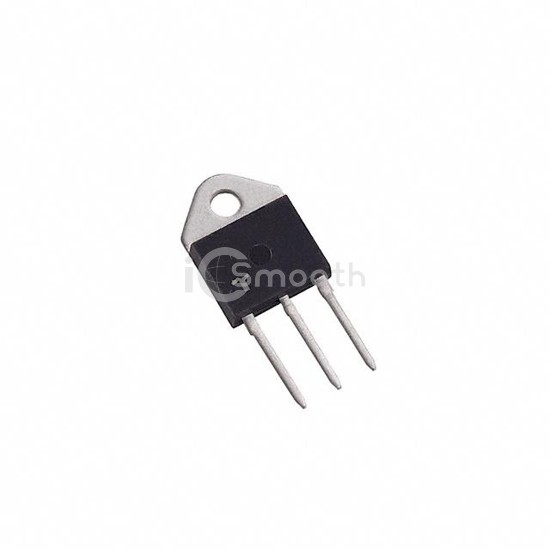

TRIAC ALTERNISTOR 400V 25A TO218

Q4025K6TP is a Thyristors - TRIACs manufactured by Littelfuse Inc.. TRIAC ALTERNISTOR 400V 25A TO218. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), package / case TO-218-3 Isolated Tab, TO-218AC.

Datasheet Request a Quote

In Stock: 2,803

Tiered Pricing USD

1+ $7.8200 —

25+ $4.6880 -40%

100+ $3.9411 -50%

500+ $3.8266 -51% BEST

Specifications

13 parameters

Product Status	Active
Triac Type	Alternistor - Snubberless
Voltage - Off State	400 V
Current - On State (It (RMS)) (Max)	25 A
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	208A, 250A
Current - Gate Trigger (Igt) (Max)	80 mA

Current - Hold (Ih) (Max)	100 mA
Configuration	Single
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-218-3 Isolated Tab, TO-218AC
Supplier Device Package	TO-218 Isolated Tab
