Name: Q4008LT
Brand: Littelfuse Inc.
SKU: Q4008LT
Availability: InStock

REF: Q4008LT Littelfuse Inc.

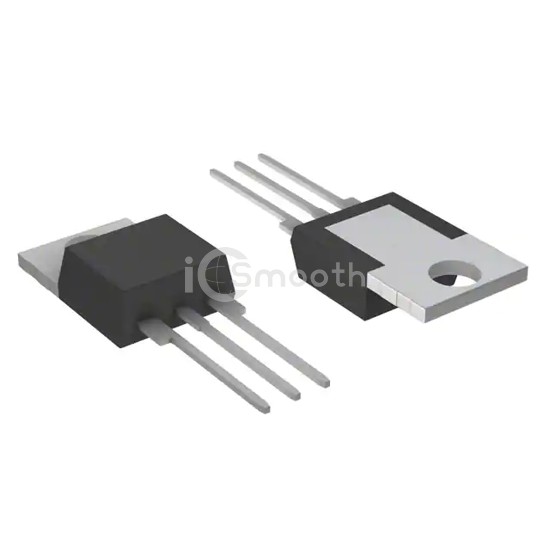

Q4008LT

TRIAC INT TRIGGER 400V 8A TO220

Q4008LT is a Thyristors - TRIACs manufactured by Littelfuse Inc.. TRIAC INT TRIGGER 400V 8A TO220. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), package / case TO-220-3 Isolated Tab.

Datasheet Request a Quote

In Stock: 2,676

Specifications

13 parameters

Product Status	Discontinued at Digi-Key
Triac Type	Internally Triggered
Voltage - Off State	400 V
Current - On State (It (RMS)) (Max)	8 A
Voltage - Gate Trigger (Vgt) (Max)	-
Current - Non Rep. Surge 50, 60Hz (Itsm)	83A, 100A
Current - Gate Trigger (Igt) (Max)	-

Current - Hold (Ih) (Max)	60 mA
Configuration	Single
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3 Isolated Tab
Supplier Device Package	TO-220 Isolated Tab
