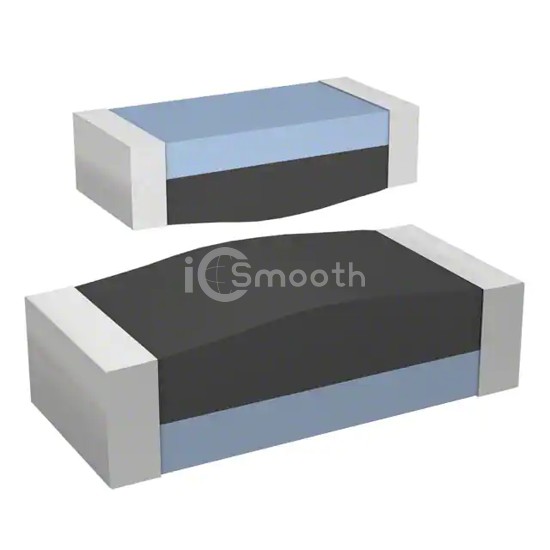

Name: PESD0402-140
Brand: Littelfuse Inc.
SKU: PESD0402-140
Price: 0.43 USD
Availability: InStock

REF: PESD0402-140 Littelfuse Inc.

PESD0402-140

TVS DIODE 14VWM 40VC 0402

PESD0402-140 is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 14VWM 40VC 0402. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 0402 (1005 Metric).

Datasheet Request a Quote

In Stock: 369,760

Tiered Pricing USD

1+ $0.4300 —

10+ $0.3230 -25%

100+ $0.2738 -36%

500+ $0.2079 -52%

1,000+ $0.1520 -65%

2,000+ $0.1493 -65% BEST

Specifications

16 parameters

Product Status	Active
Type	-
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	14V (Max)
Voltage - Breakdown (Min)	-
Voltage - Clamping (Max) @ Ipp	40V
Current - Peak Pulse (10/1000µs)	-

Power - Peak Pulse	-
Power Line Protection	No
Applications	Ethernet, HDMI
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	0402 (1005 Metric)
Supplier Device Package	0402
