Name: NGB8202ANTF4G
Brand: Littelfuse Inc.
SKU: NGB8202ANTF4G
Availability: InStock

REF: NGB8202ANTF4G Littelfuse Inc.

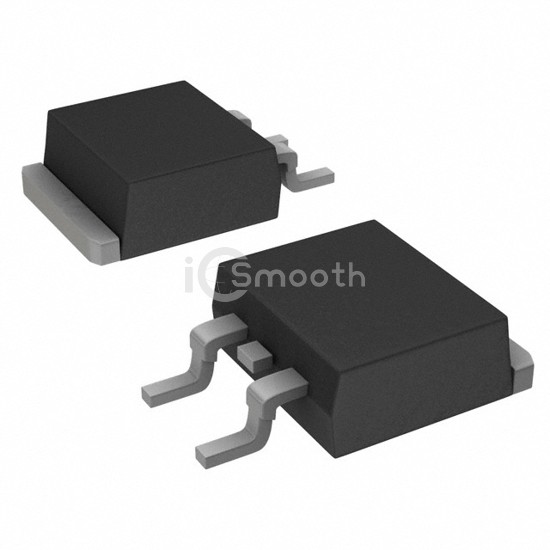

NGB8202ANTF4G

IGBT 440V 20A 150W D2PAK

NGB8202ANTF4G is a Transistors - IGBTs - Single manufactured by Littelfuse Inc.. IGBT 440V 20A 150W D2PAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB, current - collector (ic) (max) 20 A.

Datasheet Request a Quote

In Stock: 5,480

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	440 V
Current - Collector (Ic) (Max)	20 A
Current - Collector Pulsed (Icm)	50 A
Vce(on) (Max) @ Vge, Ic	1.9V @ 4.5V, 20A
Power - Max	150 W
Switching Energy	-
Input Type	Logic

Gate Charge	-
Td (on/off) @ 25°C	-/5µs
Test Condition	300V, 9A, 1kOhm, 5V
Reverse Recovery Time (trr)	-
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	TO-263 (D²Pak)
