Name: NGB18N40ACLBT4G
Brand: Littelfuse Inc.
SKU: NGB18N40ACLBT4G
Availability: InStock

REF: NGB18N40ACLBT4G Littelfuse Inc.

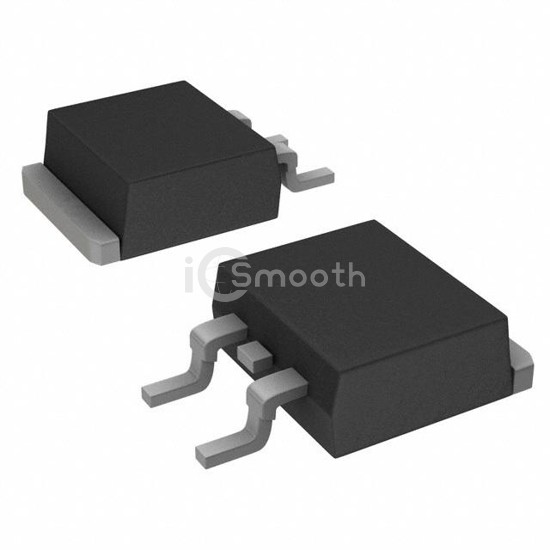

NGB18N40ACLBT4G

IGBT 430V 18A 115W D2PAK3

NGB18N40ACLBT4G is a Transistors - IGBTs - Single manufactured by Littelfuse Inc.. IGBT 430V 18A 115W D2PAK3. Key specifications: mounting type Surface Mount, package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB, current - collector (ic) (max) 18 A, power - max 115 W.

Datasheet Request a Quote

In Stock: 1,122

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	430 V
Current - Collector (Ic) (Max)	18 A
Current - Collector Pulsed (Icm)	50 A
Vce(on) (Max) @ Vge, Ic	2.5V @ 4V, 15A
Power - Max	115 W
Switching Energy	-
Input Type	Logic

Gate Charge	-
Td (on/off) @ 25°C	-
Test Condition	-
Reverse Recovery Time (trr)	-
Operating Temperature	-
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	D2PAK
