MG12600WB-BR2MM

In Stock: 1

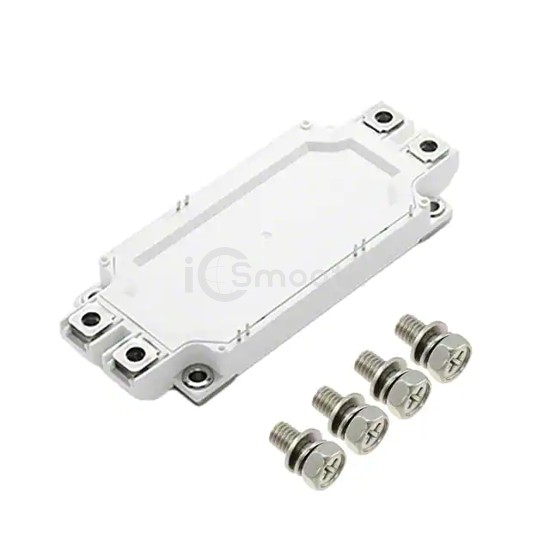

MG12600WB-BR2MM - Littelfuse Inc. - Transistors - IGBTs - Modules
REF: MG12600WB-BR2MM Littelfuse Inc.
MG12600WB-BR2MM

Littelfuse Inc.

IGBT MODULE 1200V 750A 2500W WB

MG12600WB-BR2MM is a Transistors - IGBTs - Modules manufactured by Littelfuse Inc.. IGBT MODULE 1200V 750A 2500W WB. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C, package / case Module, current - collector (ic) (max) 750 A.

Datasheet Request a Quote

In Stock: 1

Specifications

15 parameters
Product StatusObsolete
IGBT TypeTrench Field Stop
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)750 A
Power - Max2500 W
Vce(on) (Max) @ Vge, Ic2.5V @ 15V, 600A
Current - Collector Cutoff (Max)100 µA
Input Capacitance (Cies) @ Vce60.5 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 150°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageWB
