Name: MG1250W-XBN2MM
Brand: Littelfuse Inc.
SKU: MG1250W-XBN2MM
Availability: InStock

REF: MG1250W-XBN2MM Littelfuse Inc.

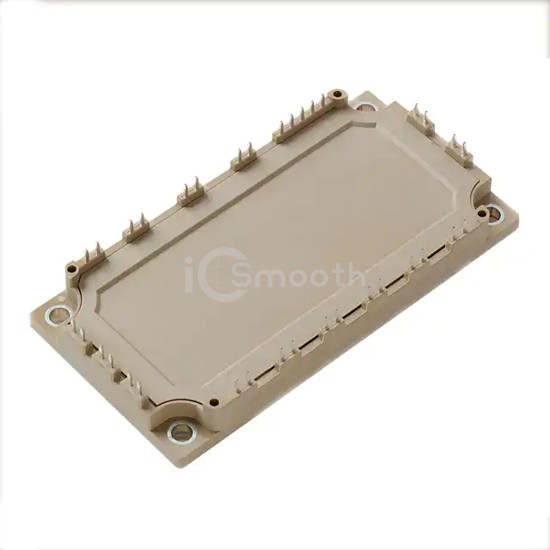

MG1250W-XBN2MM

IGBT MOD 1200V 75A 260W

MG1250W-XBN2MM is a Transistors - IGBTs - Modules manufactured by Littelfuse Inc.. IGBT MOD 1200V 75A 260W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (TJ), package / case Module, current - collector (ic) (max) 75 A.

Datasheet Request a Quote

In Stock: 4,127

Specifications

15 parameters

Product Status	Obsolete
IGBT Type	-
Configuration	Three Phase Inverter with Brake
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	75 A
Power - Max	260 W
Vce(on) (Max) @ Vge, Ic	1.7V @ 15V, 50A (Typ)
Current - Collector Cutoff (Max)	1 mA

Input Capacitance (Cies) @ Vce	3.6 nF @ 25 V
Input	Three Phase Bridge Rectifier
NTC Thermistor	Yes
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	Module
