Name: MG1240H-XBN2MM
Brand: Littelfuse Inc.
SKU: MG1240H-XBN2MM
Availability: InStock

REF: MG1240H-XBN2MM Littelfuse Inc.

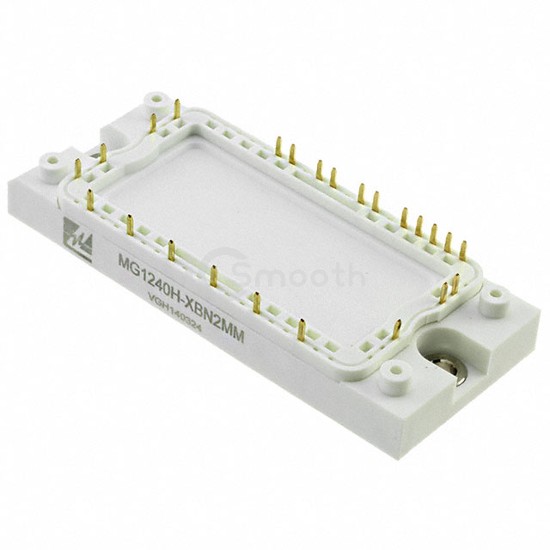

MG1240H-XBN2MM

IGBT MOD 1200V 25A 105W

MG1240H-XBN2MM is a Transistors - IGBTs - Modules manufactured by Littelfuse Inc.. IGBT MOD 1200V 25A 105W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (TJ), package / case Module, current - collector (ic) (max) 25 A.

Datasheet Request a Quote

In Stock: 2,043

Specifications

15 parameters

Product Status	Obsolete
IGBT Type	-
Configuration	Three Phase Inverter with Brake
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	25 A
Power - Max	105 W
Vce(on) (Max) @ Vge, Ic	1.8V @ 15V, 40A
Current - Collector Cutoff (Max)	50 µA

Input Capacitance (Cies) @ Vce	1.1 nF @ 25 V
Input	Three Phase Bridge Rectifier
NTC Thermistor	Yes
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	Module
