MG12400D-BN2MM

In Stock: 7,065

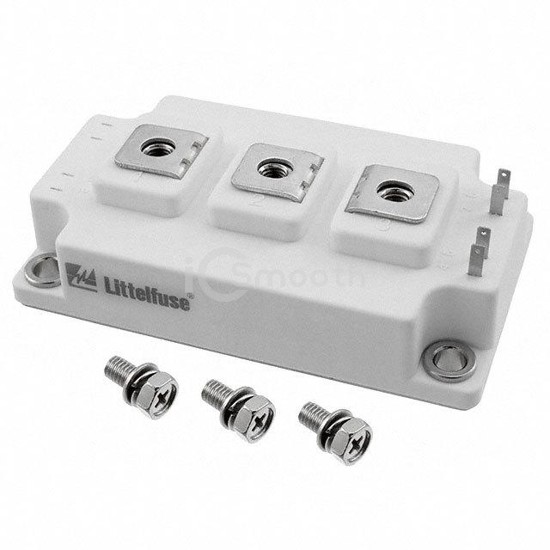

MG12400D-BN2MM - Littelfuse Inc. - Transistors - IGBTs - Modules
REF: MG12400D-BN2MM Littelfuse Inc.
MG12400D-BN2MM

Littelfuse Inc.

IGBT MODULE 1200V 580A 1925W D3

MG12400D-BN2MM is a Transistors - IGBTs - Modules manufactured by Littelfuse Inc.. IGBT MODULE 1200V 580A 1925W D3. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (TJ), package / case Module, current - collector (ic) (max) 580 A.

Datasheet Request a Quote

In Stock: 7,065

Specifications

15 parameters
Product StatusObsolete
IGBT TypeTrench Field Stop
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)580 A
Power - Max1925 W
Vce(on) (Max) @ Vge, Ic1.7V @ 15V, 400A (Typ)
Current - Collector Cutoff (Max)2 mA
Input Capacitance (Cies) @ Vce28 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageD3
