Name: MG12300D-BN3MM
Brand: Littelfuse Inc.
SKU: MG12300D-BN3MM
Availability: InStock

REF: MG12300D-BN3MM Littelfuse Inc.

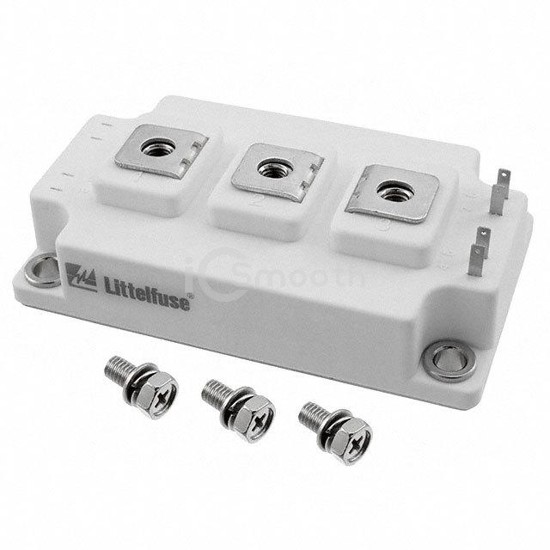

MG12300D-BN3MM

IGBT MODULE 1200V 450A 1450W D3

MG12300D-BN3MM is a Transistors - IGBTs - Modules manufactured by Littelfuse Inc.. IGBT MODULE 1200V 450A 1450W D3. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (TJ), package / case D-3 Module, current - collector (ic) (max) 450 A.

Datasheet Request a Quote

In Stock: 9,296

Specifications

15 parameters

Product Status	Obsolete
IGBT Type	-
Configuration	Half Bridge
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	450 A
Power - Max	1450 W
Vce(on) (Max) @ Vge, Ic	3.2V @ 15V, 300A
Current - Collector Cutoff (Max)	2 mA

Input Capacitance (Cies) @ Vce	22 nF @ 25 V
Input	Standard
NTC Thermistor	No
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Chassis Mount
Package / Case	D-3 Module
Supplier Device Package	D3
