MG12300D-BN2MM

In Stock: 27

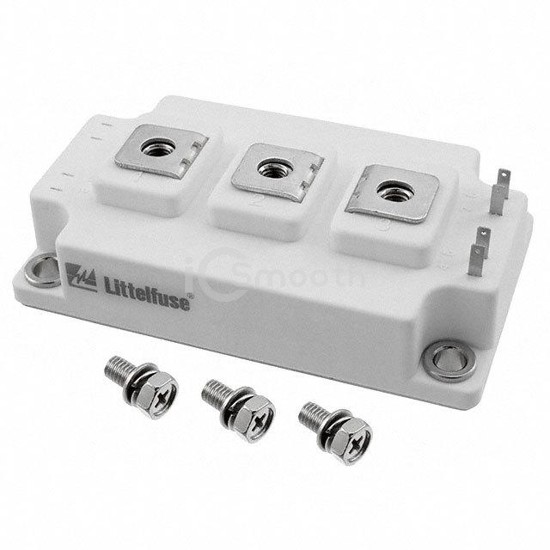

MG12300D-BN2MM - Littelfuse Inc. - Transistors - IGBTs - Modules
REF: MG12300D-BN2MM Littelfuse Inc.
MG12300D-BN2MM

Littelfuse Inc.

IGBT MODULE 1200V 480A 1450W D3

MG12300D-BN2MM is a Transistors - IGBTs - Modules manufactured by Littelfuse Inc.. IGBT MODULE 1200V 480A 1450W D3. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (TJ), package / case D-3 Module, current - collector (ic) (max) 480 A.

Datasheet Request a Quote

In Stock: 27

Specifications

15 parameters
Product StatusObsolete
IGBT Type-
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)480 A
Power - Max1450 W
Vce(on) (Max) @ Vge, Ic1.7V @ 15V, 300A
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce21 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeChassis Mount
Package / CaseD-3 Module
Supplier Device PackageD3
