Name: MG1225H-XN2MM
Brand: Littelfuse Inc.
SKU: MG1225H-XN2MM
Availability: InStock

REF: MG1225H-XN2MM Littelfuse Inc.

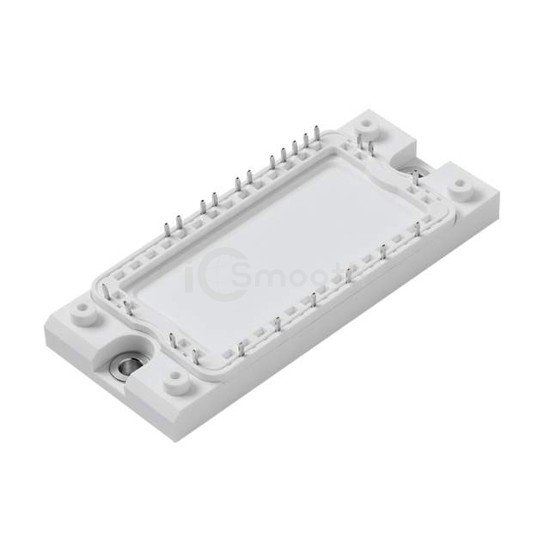

MG1225H-XN2MM

IGBT MOD 1200V 40A 147W

MG1225H-XN2MM is a Transistors - IGBTs - Modules manufactured by Littelfuse Inc.. IGBT MOD 1200V 40A 147W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (TJ), package / case Module, current - collector (ic) (max) 40 A.

Datasheet Request a Quote

In Stock: 8,800

Specifications

15 parameters

Product Status	Obsolete
IGBT Type	Trench Field Stop
Configuration	Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	40 A
Power - Max	147 W
Vce(on) (Max) @ Vge, Ic	1.7V @ 15V, 25A
Current - Collector Cutoff (Max)	100 µA

Input Capacitance (Cies) @ Vce	1.81 nF @ 25 V
Input	Standard
NTC Thermistor	Yes
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	Module
