Name: MG12200D-BA1MM
Brand: Littelfuse Inc.
SKU: MG12200D-BA1MM
Availability: InStock

REF: MG12200D-BA1MM Littelfuse Inc.

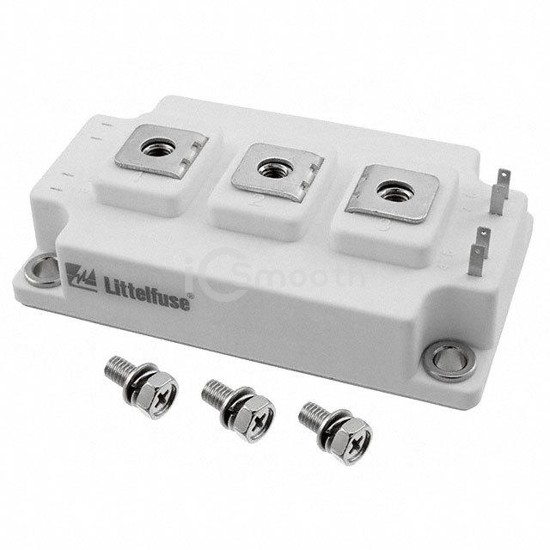

MG12200D-BA1MM

IGBT MODULE 1200V 300A 1400W D3

MG12200D-BA1MM is a Transistors - IGBTs - Modules manufactured by Littelfuse Inc.. IGBT MODULE 1200V 300A 1400W D3. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, current - collector (ic) (max) 300 A.

Datasheet Request a Quote

In Stock: 7,192

Specifications

15 parameters

Product Status	Obsolete
IGBT Type	-
Configuration	Half Bridge
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	300 A
Power - Max	1400 W
Vce(on) (Max) @ Vge, Ic	1.8V @ 15V, 200A (Typ)
Current - Collector Cutoff (Max)	1 mA

Input Capacitance (Cies) @ Vce	14.9 nF @ 25 V
Input	Standard
NTC Thermistor	No
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	D3
