MG1215H-XBN2MM

In Stock: 3,369

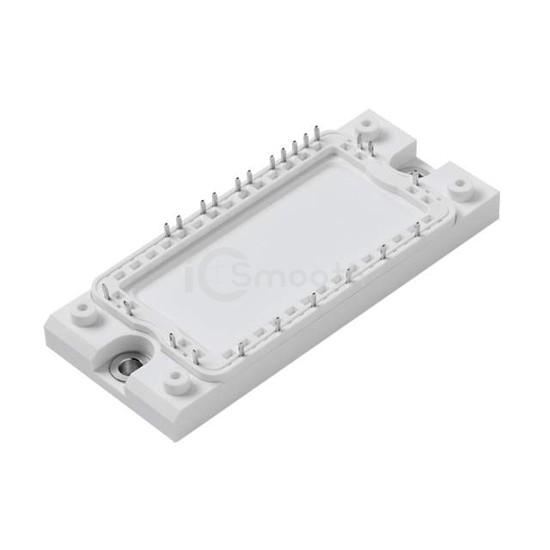

MG1215H-XBN2MM - Littelfuse Inc. - Transistors - IGBTs - Modules
REF: MG1215H-XBN2MM Littelfuse Inc.
MG1215H-XBN2MM

Littelfuse Inc.

IGBT MOD 1200V 25A 105W

MG1215H-XBN2MM is a Transistors - IGBTs - Modules manufactured by Littelfuse Inc.. IGBT MOD 1200V 25A 105W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (TJ), package / case Module, current - collector (ic) (max) 25 A.

Datasheet Request a Quote

In Stock: 3,369

Specifications

15 parameters
Product StatusObsolete
IGBT Type-
ConfigurationThree Phase Inverter with Brake
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)25 A
Power - Max105 W
Vce(on) (Max) @ Vge, Ic2.15V @ 15V, 15A
Current - Collector Cutoff (Max)50 µA
Input Capacitance (Cies) @ Vce1.1 nF @ 25 V
InputThree Phase Bridge Rectifier
NTC ThermistorYes
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
